8' Skinny Corner Module


View Full Size Module Diagram
8' Skinny Corner Module
Cuts
#
Cuts
Board Length
11" x 4"23 1/4" w/ one 45° miter
11" x 4"12" w/ one 67.5° miter
11" x 4"58 25/64" w/ one 67.5° miter
11" x 4"50 23/32"
21" x 4"23 61/64" (one with holes for wires)
21" x 4"4" glue block (for beneath rails)
42" x 2"36 1/2" OR 35 3/4" w/ 3/4" foam board on top
12" x 2"23 61/64" (with holes for wires)
52" x 2"3 1/4" glue block
42" x 2"5 1/4" glue block
22" x 4"3 1/4" glue block
22" x 4"3 1/4" glue block w/ one 45° miter
11/2" ply8" x 17"
11/2" ply8" x 21"

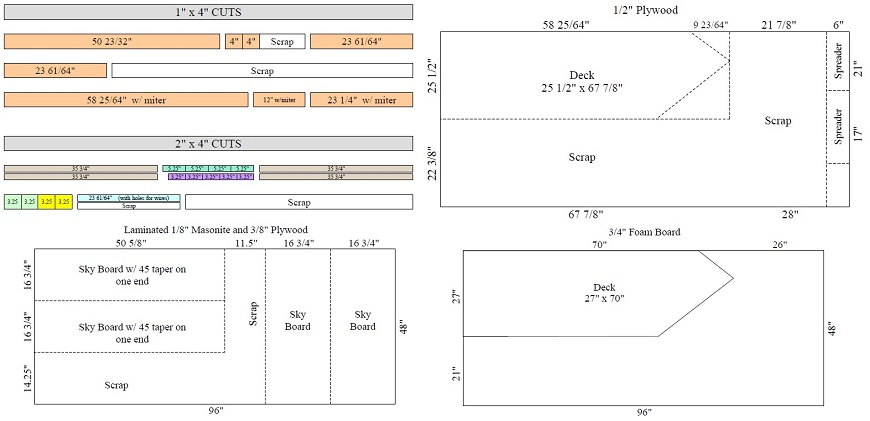

8' skinny corner module cuts
