3' Standard Corner Module

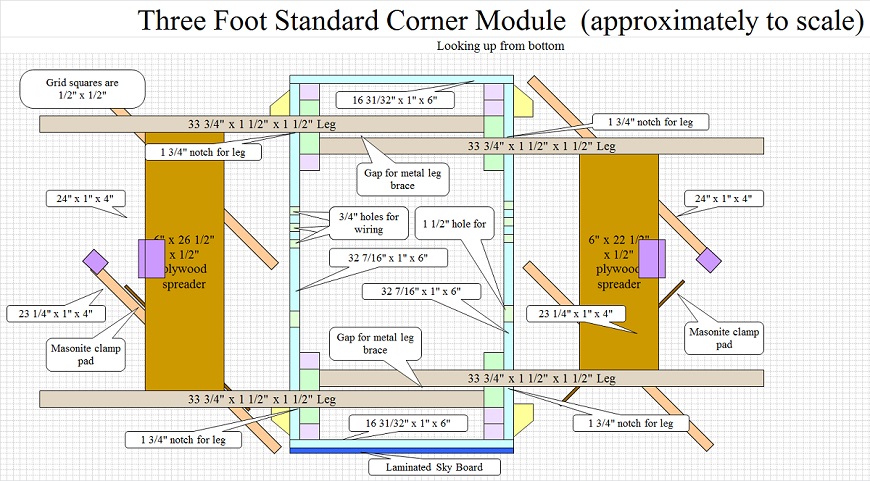

View Full Size Module Diagram
3' Standard Corner Module
Cuts
#
Cuts
Board Length
21" x 4"24" w/ one 45° miter
21" x 4"23 1/4" w/ one 45° miter
21" x 4"4" glue block (for beneath rails)
21" x 6"16 31/32"
21" x 6"32 7/16" w/ notches for folding legs and holes for wires
42" x 2"34 1/2" OR 33 3/4" w/ 3/4" foam board on top
62" x 2"3 1/4" glue block
82" x 2"5 1/4" glue block
42" x 4"5" glue block & riser for leg hinges
42" x 4"3 1/4" glue block w/ one 45° miter
11/2" ply8" x 22 1/2"
11/2" ply8" x 26 1/2"

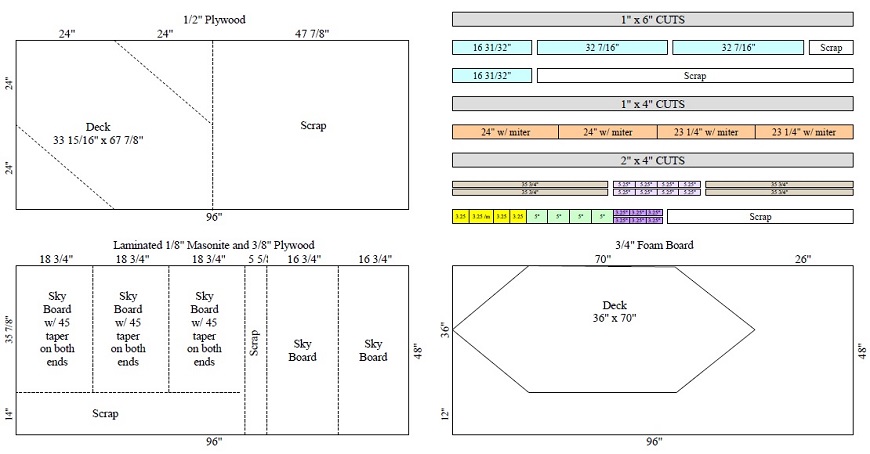

3' corder module cuts
