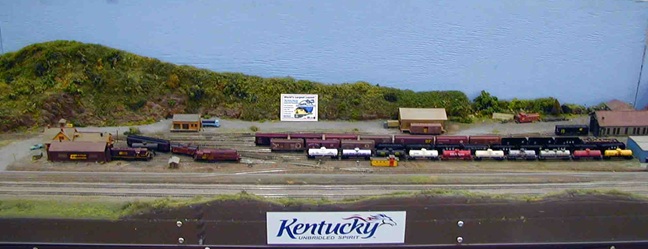

Beaver Bottom
| Diorama: | Beaver Bottom - includes Beaver Bottom and Beaver Gap |
| Owner Name: | Pert |
| Sponsor: | Pert |
| Date Built: | unknown |
| Date Updated: | |
| Status: | Active |
| Module Type: |
One 6' standard module and one 2' standard module w/ non-standard track position at the connection of the two. |
| Length: | 6' & 2' |
| Width: | 2' |
| Skyboard: | 14" plywood |
Track
| Code | Brand | Turnouts | Crossovers | Passing Sidings | Yard Tracks | Industrial Spurs | Other Tracks |
|---|---|---|---|---|---|---|---|
| 80 | Atlas | unknown | none | one - blue line | five | none | yes |
Electrical
| Wire | Connector | 110V | |
|---|---|---|---|
| Red | 12 gauge | PP-30 | |
| Yellow | 12 gauge | PP-30 | |
| Blue | 12 gauge | PP-30 | |
| Other |
| DCC Equipment: | none |
| Powered Accessories: | Yard and auxiliary tracks are isolated and can be powered by a separate power system that plugs into a Cinch-Jones connector on the skyboard. |
| Designer | Carpentry | Track | Wiring | Scenery | Oklahoma Scene | Route 66 Scene | Prototype RR |
|---|---|---|---|---|---|---|---|
| unknown | unknown | unknown | unknown | unknown |
Sign Board
| Working out of its home base in Beaver Bottom, Kentucky, the Elkhorn Northern Railroad provided Rail Services to Businesses in several towns around this isolated and mountainous area in the far southeastern tip of the Blue Grass State. |
Description & History
| Beaver Bottom was originally part of a home layout. When that layout was torn down, this diorama was saved and placed on an N-Trak module. Originally having only one main-line track, two additional tracks were added at the front to comply with N-Trak standards. The 2' Beaver Gap module was built to bring the left side back to N-Trak standards and to provide access to a set-up track behind the skyboard. There really is a Beaver Bottom, KY and it was served by the Elkhorn Southern Railway which later became part of the Clinchfield, then the Seaboard Coast Line, Family Lines and finally CSX. |
