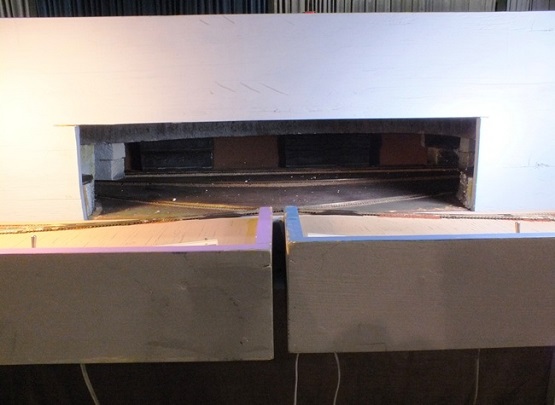

Blue and Purple Staging Yards
| Diorama: | H3 - includes Holy Wholly Holey, blue staging yard and purple staging yard |
| Owner Name: | NEONS |
| Sponsor: | Razor / Fearless Leader |
| Date Built: | 2010 |
| Date Updated: | |
| Status: | Active |
| Module Type: | two clamp-on staging yards |
| Length: | 8' x 2 |
| Width: | 8" |
| Skyboard: | none |
Track
| Code | Brand | Turnouts | Crossovers | Passing Sidings | Yard Tracks | Industrial Spurs | Other Tracks |
|---|---|---|---|---|---|---|---|
| 80 | Atlas | 4 Peco medium / module | none | none | 5 each | none | none |
Electrical
| Wire | Connector | 110V | |
|---|---|---|---|
| Red | |||
| Yellow | |||
| Blue | 18 gauge | C-J (m) | |
| Other |
| DCC Equipment: | none |
| Powered Accessories: | on/off power switch for each yard |
| Designer | Carpentry | Track | Wiring | Scenery | Oklahoma Scene | Route 66 Scene | Prototype RR |
|---|---|---|---|---|---|---|---|
| Razor | Razor | Razor | Razor | Chester |
Sign Board
Description & History
| The blue line is normally operated in a counter-clockwise direction making the Blue yard for departures and the Purple for arrivals. Both staging yards have two dowel pins that position and align the modules with Holy Wholly Holey. There are also two folding legs that extend to keep the yard from sagging when someone inadvertently leans on it. A 1" high lip surrounds the module surface to keep rolling stock from falling off. The five track yard holds about one scale mile of cars. The yards are connected to blue line power with C-J connectors that plug into recepticals on H3. An insulated connector track isolates each yard from the host module, allowing a toggle switch to turns power on and off to that yard. |
