Diorama: | |
Owner Name: | NEONS |
Sponsor: | Razor |
Date Built: | 2008 |
Date Updated: | |
Status: | Active |
Module Type: | 4' narrow corner module |
Length: | 68" |
Width: | 24" |
Skyboard: | 12" laminate |
Code | Brand | Turnouts | Crossovers | Passing Sidings | Yard Tracks | Industrial Spurs | Other Tracks |
---|---|---|---|---|---|---|---|
80 | Atlas | 3 Peco short | none | blue line (under construction) | none | one - see below | none |
Wire | Connector | 110V | |
---|---|---|---|
Red | 12 gauge | PP-30 | |
Yellow | 12 gauge | PP-30 | |
Blue | 12 gauge | PP-30 | |
Other | Yes |
DCC Equipment: | Two UP-5s. One on the front and one on the back of module. |
Powered Accessories: | one wall wart to power the two UP-5s |
Designer | Carpentry | Track | Wiring | Scenery | Oklahoma Scene | Route 66 Scene | Prototype RR |
---|---|---|---|---|---|---|---|
Razor | Kroutter | Razor | Razor | Razor |
![]() |

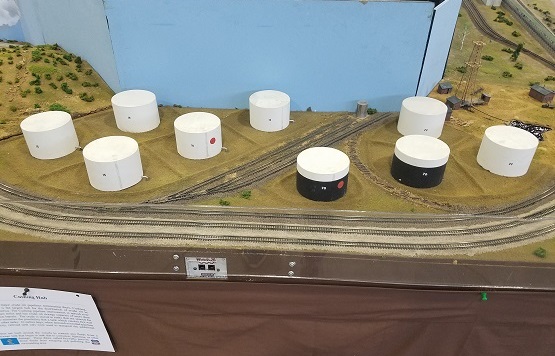

With eight major crude oil pipelines terminating there, Cushing, Oklahoma is the largest hub for the
distribution of crude oil in North America. The Cushing pipeline interconnect is spread over nine
square miles and has crude oil storage capacity of more than 33 million barrels. The crude is stored
in tanks that are spaced far apart to minimize the possibility that a tank which catches fire will
ignite other tanks. In earlier days, when demand exceeded pipeline capacity, railroad tank cars were
used to transport the additional oil. Dikes are built around the vessels to contain any fluids from a
storage tank that begins to leak due to corrosion, lightning, or other damage. These dikes, called
firewalls, prevent those fluids from escaping and polluting the surrounding area.
|
One of our original standard 4' corners was a crude oil tank farm. It was abandoned in 2008 and the tanks were salvaged and used on this new module. |
Industry | Access Track | Switch Direction | Car Types | Spur Capacity |
---|---|---|---|---|
Abandoned crude oil tanker loading facility | Blue | ccw | crude oil tank cars | 10 |
