Mounds
| Diorama: | Store Layout |
| Owner Name: | CNS Hobbies |
| Sponsor: | Fearless Leader |
| Date Built: | 2003 |
| Date Updated: | 2012 |
| Status: | Assigned to permanent layout at Challenger N-Scale Hobbies |
| Module Type: | 3' corner w/ permanently attached legs |
| Length: | 51" |
| Width: | 25.5" |
| Skyboard: | 12" laminate |
Track
| Code | Brand | Turnouts | Crossovers | Passing Sidings | Yard Tracks |
|---|---|---|---|---|---|
| 80 | Atlas | Peco RH double curve | none | blue line (under construction) | none |
Electrical
| Wire | Connector | 110V | |
|---|---|---|---|
| Red | 18 gauge | C-J | |
| Yellow | 18 gauge | C-J | |
| Blue | 18 gauge | C-J | |
| Other |
| DCC Equipment: | none |
| Powered Accessories: | none |
| Designer | Carpentry | Track | Wiring | Scenery | Oklahoma Scene | Route 66 Scene | Prototype RR |
|---|---|---|---|---|---|---|---|
| Joe "Slim" Lovett | Joe "Slim" Lovett | Pyro | Razor | Razor |
Sign Board
|

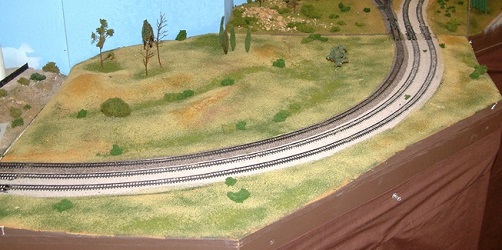

One day a club member was grousing about the unfinished corners. It was quickly
suggested that he turn his attention from talk to action! So, with the aid of a hand rasp, a few
strokes here and there, the surface was sculptured so that it had a bit of relief to it. He then
sprinkled on some ground cover, added some trees and presto, we now have a module with scenery.
There are rumors that some dark and foggy night a cemetery might mysteriously appear here.
|
Description & History
| When our sponsor, Challenger N-Scale Hobbies, moved to its current location we decided that we should assign some older modules to a semi-permanently store layout. Not having any spare corners, we chose to build a set of four smaller, 3' corners that would remain with the store layout. Because they would not be travelling, these modules had permanent legs rather than fold-up legs. |
Industry Details
| Industry | Access Track | Switch Direction | Car Types | Spur Capacity |
|---|---|---|---|---|
| Turnout that connects to a siding on adjacent module | Blue | clockwise | all |
