Utility Bridge

Diorama:
Owner Name:	NEONS
Sponsor:	Sir Fig
Date Built:	2004
Date Updated:
Status:	Active
Module Type:	4' module - Clamp on w/ no legs
Length:	4'
Width:	1' + 1'
Skyboard:	12" Folding

Track

Code	Brand	Turnouts	Crossovers	Passing Sidings	Yard Tracks	Industrial Spurs	Other Tracks
80	Atlas	none	none	none	none	none	none

Electrical

	Wire	Connector	110V
Red	12 gauge	PP-30	Yes
Yellow	12 gauge	PP-30	Yes
Blue	12 gauge	PP-30	Yes
Other

DCC Equipment:	none
Powered Accessories:	none

Designer	Carpentry	Track	Wiring	Scenery	Oklahoma Scene	Route 66 Scene	Prototype RR
Sir Fig	Sir Fig	Sir Fig	Sir Fig	Sir Fig

Sign Board

Just like an unruly child, sometimes a module acts up and fails to perform properly. When this happens, the module is sent to TIME OUT while its problems are addressed and corrective measures are taken. In the interim, this temporary replacement unit is used to fill the gap.

Description & History

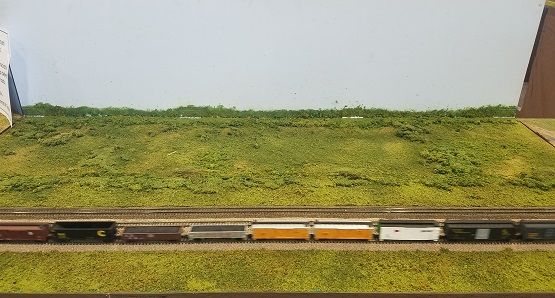

Our 4' bridge module is only 12" deep, with two 12" folding sheets that function as the back half of the module and the skyboard. When opened, it appears like a normal module since all the hinges are hidden. The module has no legs and is clamped into position between two other modules. It is not normally scheduled as a part of the layout. The scenery is simply grass and shrubs. If one of our modules has an electrical or track problem that we can't fix, we can pull that module and replace it with this one.
